Angular Integration Guide

Overview

This guide explains how to integrate your Angular components with Myop, allowing you to expose them as web components and incorporate them into Myop flows.

Table of Contents

• Exposing Angular Components
• Creating Myop WebComponents
• Creating Flows
• Using Myop Components in Angular
• Communication with Angular Components

Exposing Angular Components

There are two ways to expose your Angular components to Myop:

Direct Exposure

Use the expose function to directly expose your Angular component:

import {appConfig} from './app/app.config';
import {AppComponent} from './app/app.component';
import {exposeAngularComponent} from "@myop-dev/angular-remote";

exposeAngularComponent(AppComponent, 'test-comp-1', async () => {
   return appConfig
}).then();

Creating Myop WebComponents

Follow these steps to create a Myop WebComponent from your Angular component:

1. Open the Myop Dashboard


2. To create a new component using a predefined template, click on the "Use sample component" button.
3. To create a new component from scratch, click on the "Create from scratch" button.
4. Choose Angular loader type:


5. Define how this component connects to your host app using props and refs.

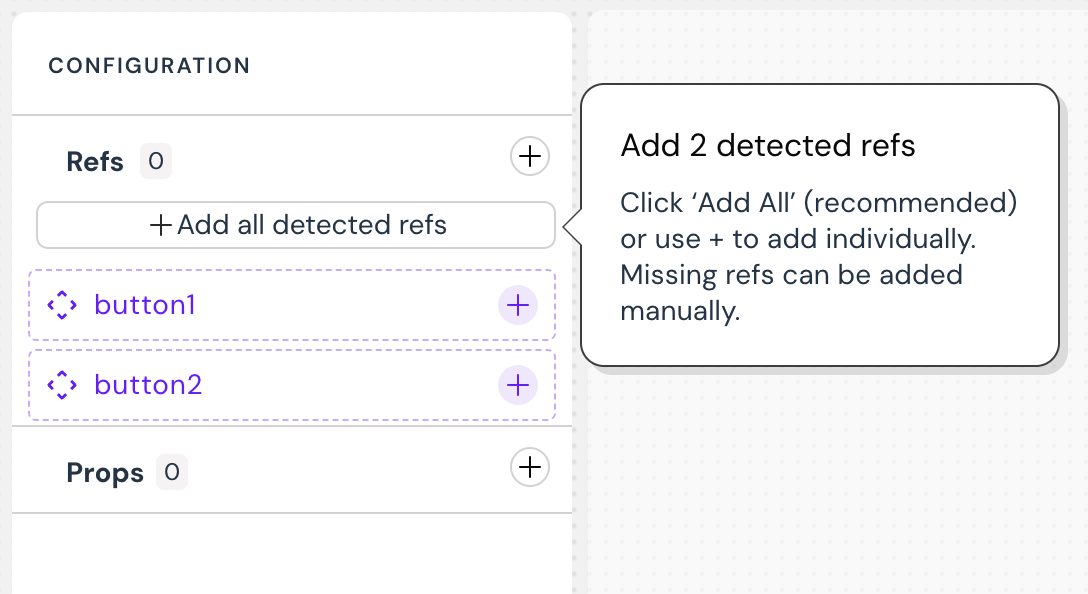

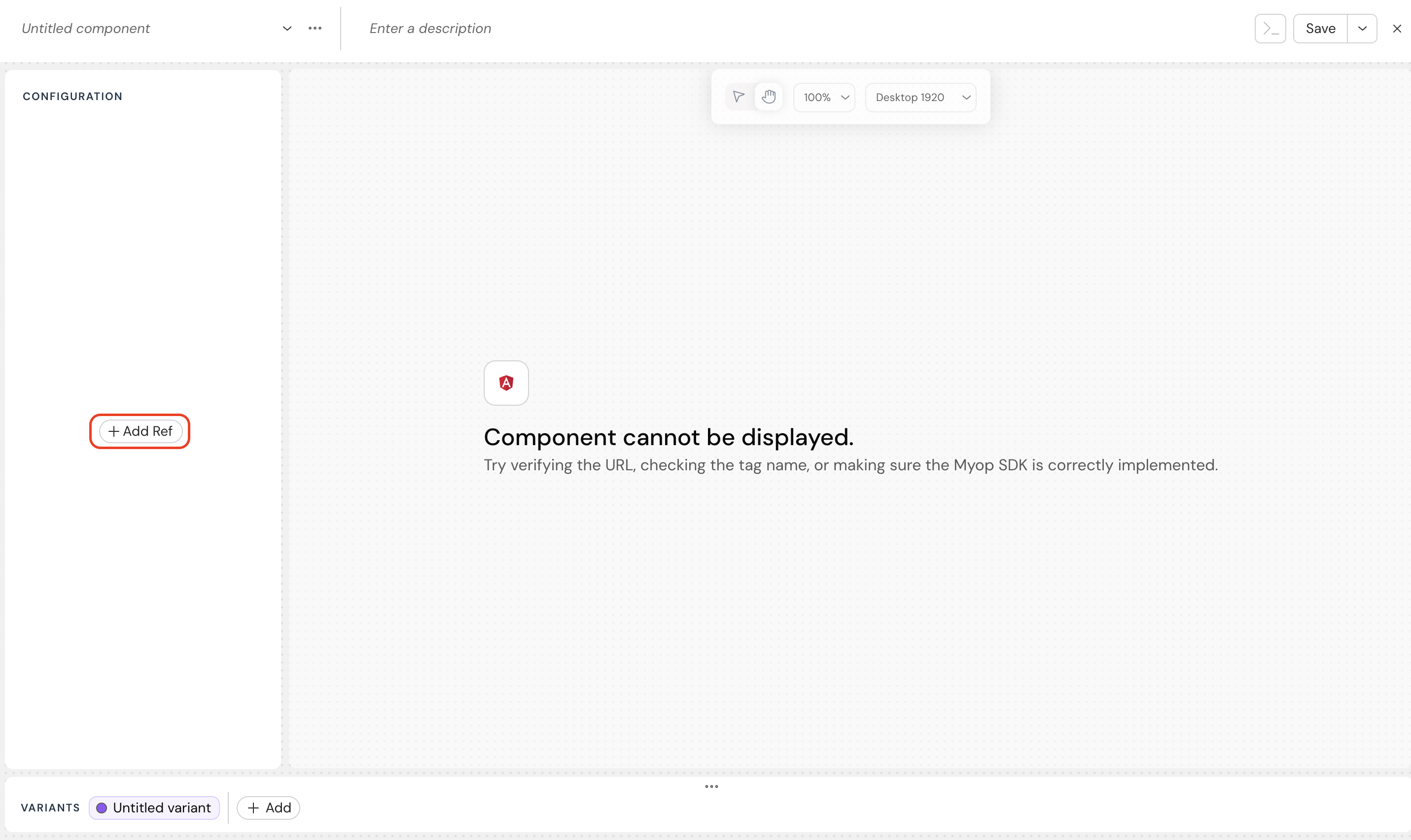

6. If you're using a template, you can add all detected refs. Otherwise, use the configuration panel to add your own refs and props.

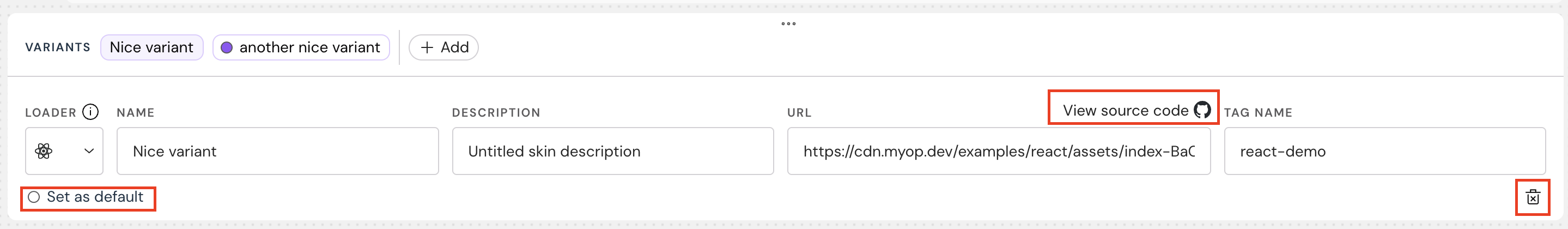

7. Configure your component:
   • Enter the component name and description.
   • Enter your component URL (e.g., http://localhost:4400/main.js).
   • Enter the tag name that you exposed the component with.
   • Click on the "view source code" button to view the Angular code example.
   • Click on the "Set to default" to set the relevant variant as the default one.
   • Click on the Delete button to delete a variant.


Note: The GUID in the browser URL is the componentId that you'll need later

8. Saving:

   • If you want to save the component, click on the "Save" button.
   • If you want to attach the component to an existing "Flow", click on the ChevronDown button to search for the relevant flow.
   • If you want to attach the component to a new flow, click on the "+ Add to flow" button after the component itself was already saved.

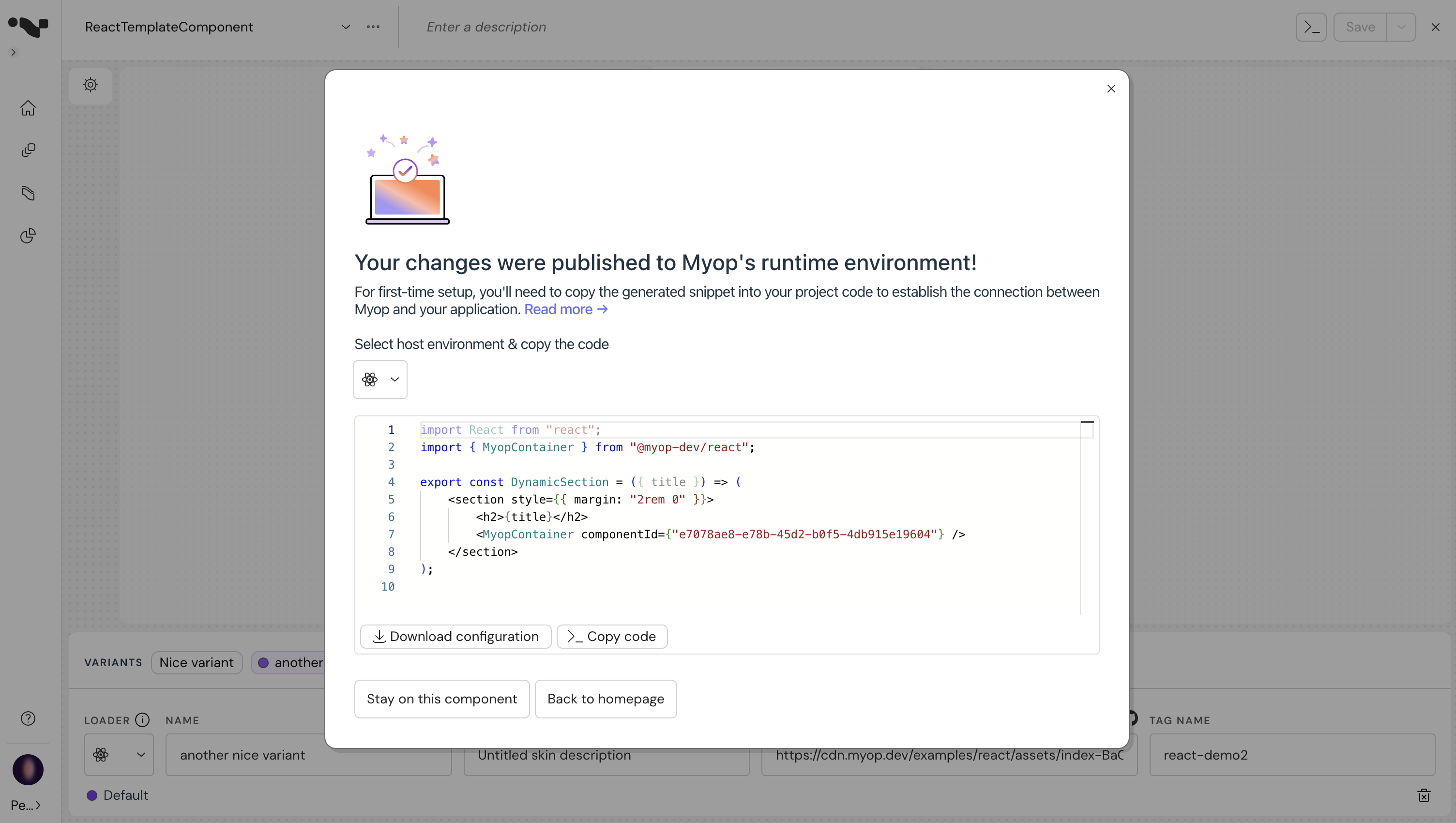

9. The component is saved and published! You can copy the code snippet and add this to your host application.


Creating Flows

1. Open the Myop Dashboard

2. Click on the "Create a new flow" button to add a new flow.

3. Add your component to the flow.


4. Note: The GUID in the browser URL is the flowId that you'll need later.

Using Myop Components in Angular

You can integrate Myop components into your Angular application in two ways:

Option 1: Via Routing

// Before
import { TodoComponent } from './todo.component.ts';

{ path: 'todo', component: TodoComponent }

// After
import { MyopContainerComponent } from '@myop-dev/angular';

{
    path: 'todo',
    data: {
      componentId: "ca8c0c4f-d26e-40c8-bf32-19eb104ee710",
      flowId: "1d75e2f9-9a2d-49f1-aeeb-6268921a29fe"
    },
    component: MyopContainerComponent
}

Option 2: As a Component in Templates

// Before
import { Component } from '@angular/core';
import { RouterOutlet } from '@angular/router';
import { TranslocoRootModule } from './transloco-root.module';
import { TodoComponent } from './todo.component.ts';

@Component({
   selector: 'app-root',
   imports: [TodoComponent],
   template: '<todo-component></todo-component>',
})
export class AppComponent {

}

// After
import { Component } from '@angular/core';
import { RouterOutlet } from '@angular/router';
import { TranslocoRootModule } from './transloco-root.module';
import { MyopContainerComponent } from '@myop/angular';

@Component({
   selector: 'app-root',
   imports: [MyopContainerComponent],
   template: `<myop-container
                  flowId="1d75e2f9-9a2d-49f1-aeeb-6268921a29fe"
                  componentId="4df90a03-553c-44a3-b153-d0ddccdc0010"/>`
})
export class AppComponent {

}

Communication with Angular Components

The MyopContainer component accepts inputs, which can include a wide variety of data types. This may consist of simple primitive values, complex objects, functions, and even non-serializable objects.

The MyopContainer component also provides a componentReady event that you can use to communicate with your Angular component.

<myop-container
   flowId="1d75e2f9-9a2d-49f1-aeeb-6268921a29fe"
   componentId="4df90a03-553c-44a3-b153-d0ddccdc0010"
   [inputs]="someObject"
   (componentReady)="onReady($event)"
 />

In your component class

someObject = {
   key1: '123',
   key2: '456',
   someInputValue : 'testValue',
   fun1 : ()=>{
      alert('ffff')
   }
}

onReady(component: IMyopComponent) {
    // Send messages to the component
    component.send(ChangeTextMessage.create(component.refs.title, this.inputs.name));

    // Show the component
    component.show();
}

Additional Resources

• For more information on the Myop platform, visit our website.
• For API documentation, refer to our docs.
