Myop CLI

The Myop CLI (@myop/cli) is a command-line tool for developing, building, and managing Myop components locally. It provides a powerful development server with hot module replacement (HMR) and seamless integration with the Myop dashboard.

See Also

For browser-based local development, check out the Myop Dev Extension — a Chrome extension that intercepts requests and serves local components without running a dev server.

Installation

npm install -g @myop/cli

Or use it directly with npx:

npx @myop/cli

Quick Start

1. Create a myop.config.json in your component directory:

{
  "componentId": "your-component-uuid",
  "componentName": "My Component",
  "HMR": true
}

2. Start the development server:

myop dev

3. Your component is now available at http://localhost:9292/view/<componentId>/

---

Commands

myop (Interactive Mode)

Running myop without arguments starts an interactive menu:

myop

Options:

• Install Myop dependencies - Fetch and generate flow types
• Add flow - Add a flow ID to your config
• Remove flow - Remove a flow ID from your config
• Quit - Exit the CLI

myop dev

Start a development server with file watching and automatic rebuilding.

myop dev

Features:

• Watches .js, .css, and .html files for changes
• Automatically runs npm run build on file changes
• Serves built components from ./dist/
• Supports Hot Module Replacement (HMR)
• Provides a visual dashboard at http://localhost:9292
• Proxies requests for non-local components to cloud.myop.dev

Ports:

Port	Purpose
9292	Main server (component serving & dashboard)
9293	Management server (component registration)

Endpoints:

Endpoint	Description
/	Visual dashboard showing registered components
/view/<componentId>/	View a specific component
/consume?id=<componentId>	API endpoint for component consumption
/events	SSE endpoint for real-time updates

myop add flow <id>

Add a flow definition to your myop.config.json:

myop add flow 4343dc94-3d39-4267-85d1-3752117302f6

myop remove flow <id>

Remove a flow definition from your myop.config.json:

myop remove flow 4343dc94-3d39-4267-85d1-3752117302f6

myop install

Install Myop generated dependencies (flows, components, refs, props):

myop install

myop sync

Build your component and sync it to the Myop dashboard:

myop sync

This command:

1. Runs npm run build
2. Starts a temporary server on port 3302
3. Opens the Myop dashboard with an upload URL
4. Automatically closes after the dashboard fetches the content

---

Configuration

myop.config.json

Create this file in your component's root directory:

{
  "componentId": "394ee658-b61b-46eb-a0ba-4856e986822d",
  "componentName": "My Component",
  "HMR": true,
  "flows": []
}

Field	Type	Description
componentId	string	UUID of your component (from Myop dashboard)
componentName	string	Display name for the component
HMR	boolean	Enable Hot Module Replacement
flows	string[]	Array of flow IDs

CLI Options

Option	Description	Default
-c, --config <path>	Path to config file	./myop.config.json
-v, --verbose	Enable verbose output	false
-h, --help	Show help message	-

---

Development Server Features

Multi-Component Support

The dev server supports multiple components simultaneously. Run myop dev in different component directories, and they'll all register with the same server:

Terminal 1 (component-a/):
$ myop dev
🚀 Starting shared dev server...
✅ Registered component: comp-a-uuid

Terminal 2 (component-b/):
$ myop dev
🔗 Connecting to existing dev server...
✅ Registered component: comp-b-uuid

Hot Module Replacement (HMR)

When HMR: true is set in your config, the CLI:

1. Injects an HMR script into your built index.html
2. Establishes a WebSocket connection with clients
3. Pushes updates when files change
4. Preserves myop_init_interface calls during updates
5. Maintains myop_cta_handler references

HMR enables instant updates without full page reloads, preserving component state.

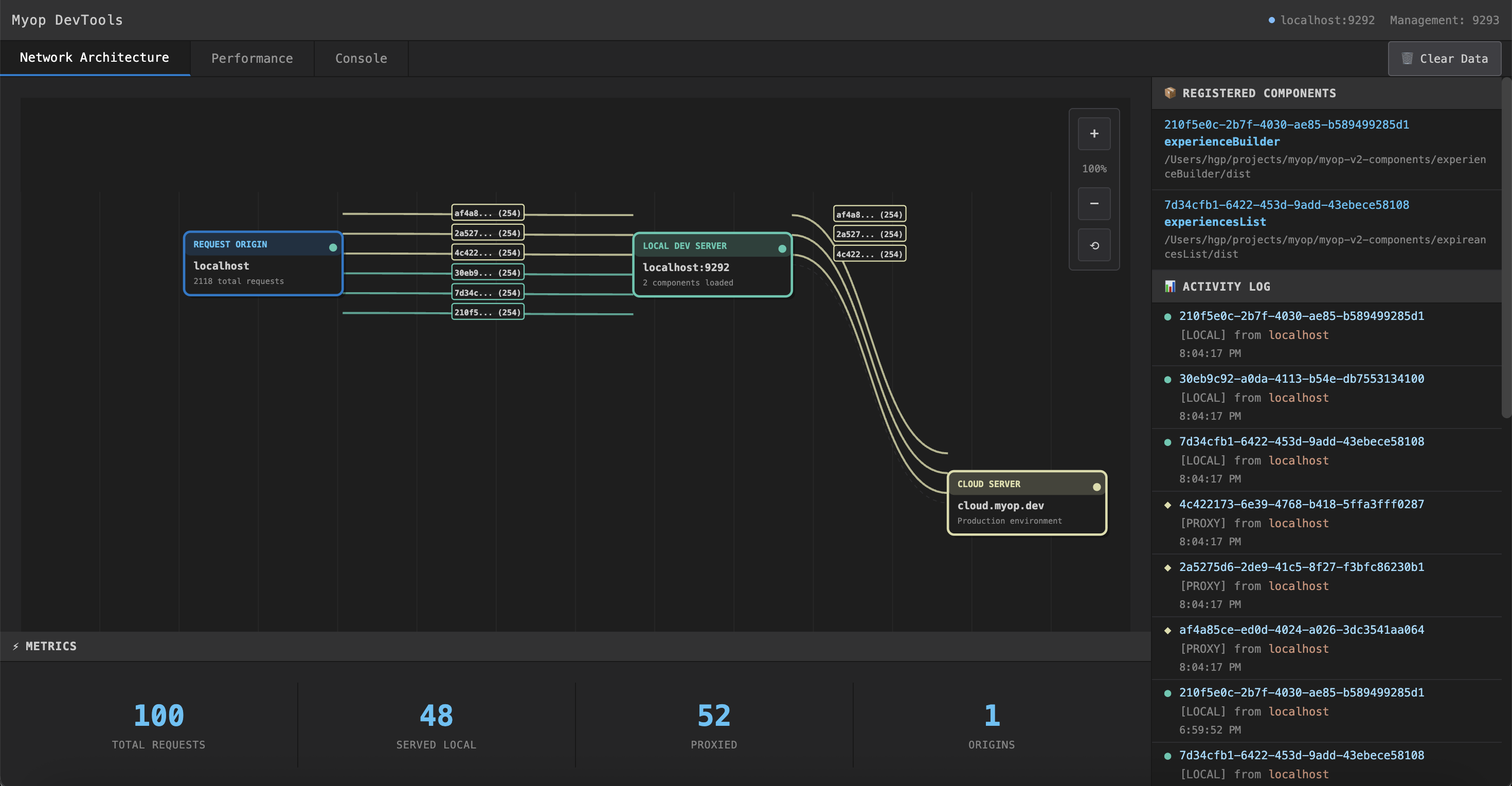

Visual Dashboard

Access http://localhost:9292 to view a real-time dashboard with network visualization, component registry, and activity logging.

Dashboard Features:

Section	Description
Network Architecture	Visual diagram showing request flow between origins, local server, and cloud
Registered Components	List of locally registered components with paths
Activity Log	Real-time log of LOCAL and PROXY requests
Metrics	Total requests, served locally, proxied, and unique origins

Network Architecture View

The network diagram visualizes how requests flow through the dev server:

• Request Origin — Where requests come from (localhost, external sites)
• Local Dev Server — Components served from your local ./dist/ folder
• Cloud Server — Requests proxied to cloud.myop.dev for non-local components

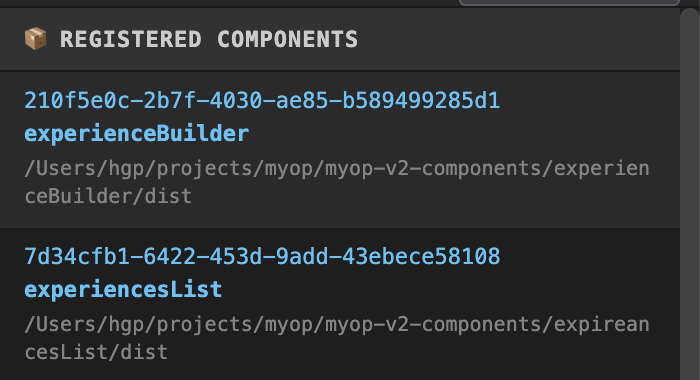

Registered Components Panel

Shows all components registered with the dev server:

Each component displays:

• Component ID — The UUID identifier
• Component Name — Display name from myop.config.json
• Path — Full path to the component's dist folder

Consume API

The /consume endpoint mimics the Myop cloud API:

curl http://localhost:9292/consume?id=<componentId>

Response:

{
  "item": {
    "name": "componentId",
    "id": "componentId",
    "consume_variant": [
      {
        "id": "dev-timestamp-random",
        "name": "dev version",
        "loader": {
          "type": "HTMLLoader",
          "shadowRootMode": "localFrame",
          "HTML": "<!DOCTYPE html>..."
        }
      }
    ]
  }
}

For components not registered locally, requests are proxied to https://cloud.myop.dev/consume.

Server Failover

If the main dev server instance exits, other running instances automatically detect the failure and one takes over as the new server, ensuring zero downtime during development.

---

Workflow Examples

Starting Fresh Development

# 1. Create component directory
mkdir my-component && cd my-component

# 2. Initialize npm project
npm init -y

# 3. Create myop.config.json
echo '{
  "componentId": "your-uuid-here",
  "componentName": "My Component",
  "HMR": true
}' > myop.config.json

# 4. Create source files and build script
# ... your component code ...

# 5. Start development
myop dev

Working with Multiple Components

# Terminal 1: Start first component
cd component-a
myop dev

# Terminal 2: Start second component (joins existing server)
cd component-b
myop dev

# Both components available at:
# http://localhost:9292/view/component-a-uuid/
# http://localhost:9292/view/component-b-uuid/

Syncing to Dashboard

# Build and sync to Myop dashboard
myop sync

---

Troubleshooting

Port Already in Use

If ports 9292 or 9293 are in use:

# Find and kill the process
lsof -i :9292
kill -9 <PID>

Component Not Found

Ensure your myop.config.json has a valid componentId and ./dist/index.html exists.

HMR Not Working

1. Check that HMR: true is in your config
2. Verify WebSocket connection in browser DevTools
3. Check for console errors

Build Failing

The CLI runs npm run build on file changes. Ensure your package.json has a working build script:

{
  "scripts": {
    "build": "your-build-command"
  }
}
